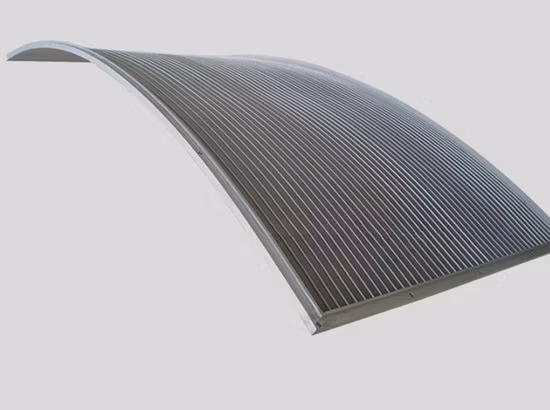

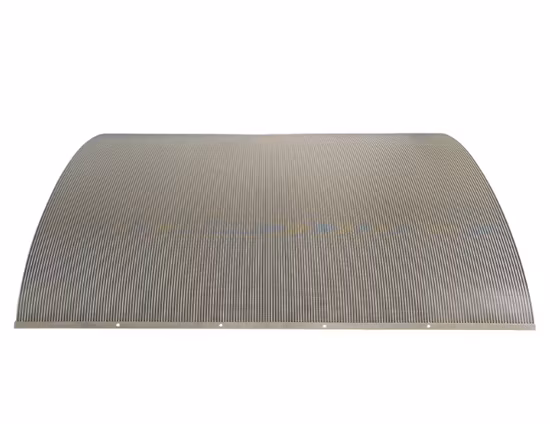

Wedge Wire Wrapped Welded Screen Sieve Bend Screen

Basic Info

Model NO.	SGK-WS01
Material	SS304,SS316,S3316L
Slot Size	0.02mm-4mm
Shape	Sheet,Pipe,Round,Arc
Surface Treatment	Polish
Package	by Crate
MOQ	1PC
Transport Package	by Crate
Specification	0.02-4mm slot size
Trademark	SGK
Origin	China
HS Code	7314490000
Production Capacity	50PCS/Week

Product Description

0.5mm 0.7mm slot gap SS304 316 Johnson wedge wire water coanda screen brewery lauter tun sieve plate koi fish pond static screen

Flat wedge wire screen sheet Wedge wire screen circle shape Wedge wire tube/Johnson pipe

name	SS304 stainless steel wedge wire screen
material	SS304,SS316,SS316L
slot size	0.02-5mm
profile wire size	1x2mm,1.2x2mm,1.5x2mm,2x3mm,2x3.5mm,2.2x3.5mm,3x4.6mm
support bar size	2x3mm,3x4mm,3x5mm
if you have drawings,please send us,we can produce it as your request

Wedge wire sieve screen consists of stainless steel triangle wire surface profiles and stainless steel support rods (triangle wire, round bar, flat bar or wedge wire). It forms various V-shape slots with narrow opening on the top and wide opening on the bottom and delivers high flow rate, excellent chemical stability and great corrosion resistance performanceDetailed PhotosSS304 316 wedge wire screen material:SS304,SS316,SS316Lprofile wire:2x3mmsupport rod:3x4mmslot gap:500micron,700micron,750micronshape:plate,round,tube,arcCoanda water filter screenmaterial:SS304,SS316slot size:0.5-1mmwith acceleration plate

John pipe screen Coanda screen

Packaging & Shipping

The package of stainless steel wedge wire screen is plastic film,then in pallet or wood carton.

Application

Wedge wire screen usage:

Deinking stock washingintake structures of hydro plantpretreatment processingfiber removal in starch industry for dewateringseparating different grades of coal

Applications for wedge wire screen panels include vibrating or static screen decking,mineral processing,surface water intake screen,fish diversion screen panels,hatchery screens,food processing,flooring for malt kiln,germination,andgrain drying to name a a few.

flat wedge wire screen panels can be constructed using rectangular support rods or round support rods.Flat wedge wire screen panels can be designed to maximise the open area,strength and wear life to suit any application.

Related ProductsFor wedge wire screen, we can also supply other shape size,if you have drawing or picture,welcome to send us, we can help you well.We can supply :stainless steel mesh pipe,Water Well Screen,Johnson Screen,wire wrapped screen pipe,wedge wire screen,screen filter
